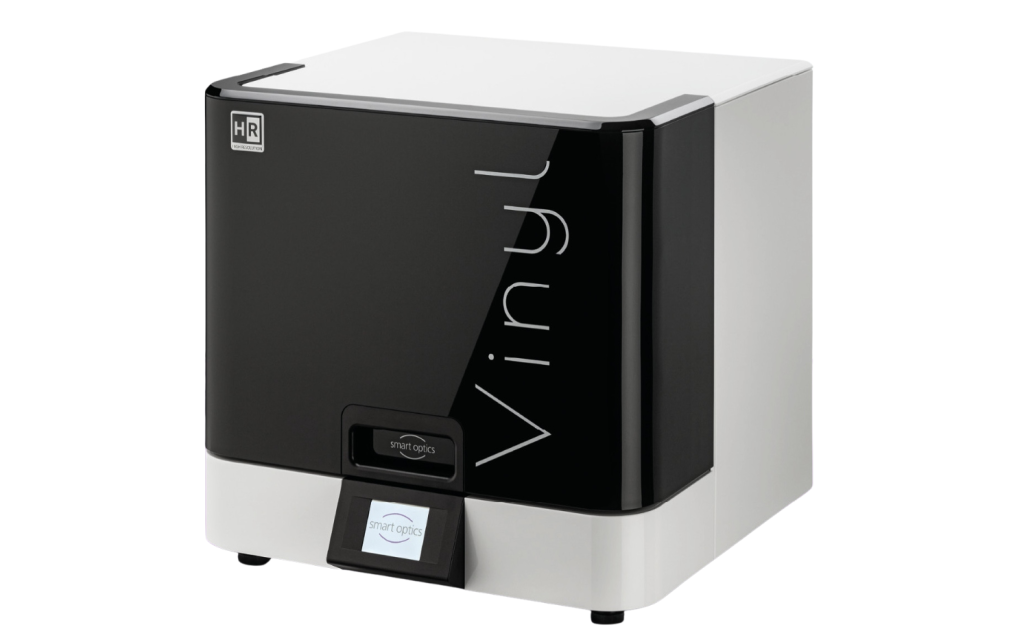

Vinyl High Resolution – The Ultimate High-Precision smart optics Scanner
Vinyl High Resolution (Vinyl HR) is the third model in the Vinyl series and the official flagship of smart optics, designed for laboratories that require maximum precision, detail, and reliability. It is engineered for the most demanding restorations, implantology cases, and bar constructions, where tolerance for error is virtually nonexistent.
Main Advantages
Exceptional Accuracy – up to 4 µm
Repeatability accuracy up to 4 µm according to DIN ISO 12836.
Ideal for implants, long-span restorations, and precision work.
Modern Blue-Light LED + 3.2 MP Camera
High-resolution camera combined with blue LED light provides an exceptionally clean and high-contrast scan image.
Ensures outstanding global and detailed accuracy, even in complex geometries.
HR and LR Modes
A unique feature allowing the user to select:
HR mode – maximum detail with higher data density;
LR mode – faster scanning when ultra-fine detail is not required.
Even with HR mode deactivated, global accuracy remains excellent and fully suitable for implantology.
All Modules Included as Standard
Without additional fees, the laboratory receives:
multiDie
secondDie
Triple Tray®

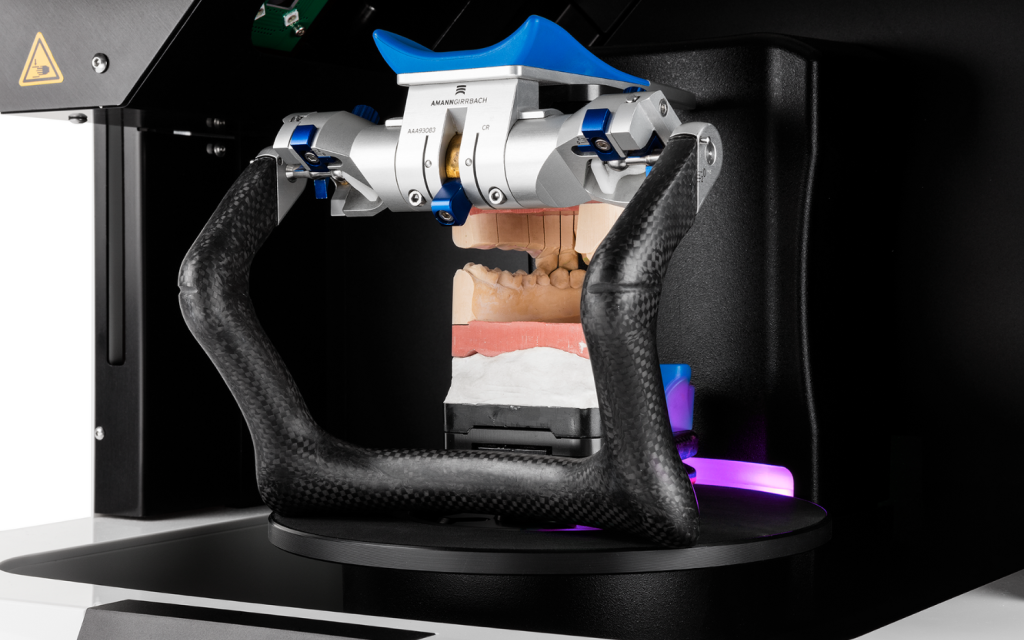

Articulator scanning
Monochrome and color texture scanning
This clearly distinguishes Vinyl HR from many other market models that often require additional licenses.
Automatic Z-Axis
Automatically lifts the model into the optimal position.
User intervention is required only in exceptional cases.
LED Status Indicator
The indicator located at the base of the Z-axis displays the device status and actions that need confirmation.
Design and Ergonomics
The Vinyl series design has received the Red Dot Design Award for aesthetics and ergonomics.
The vertically opening lid protects against dust and ambient light, while the 180° opening angle provides ample space for model placement.
Who Is Vinyl HR Best Suited For?
Recommended for laboratories that:
Work with implants
Produce bar constructions
Perform high-precision restorations
Want all modules included without additional licenses
Value German precision and long-term durability
